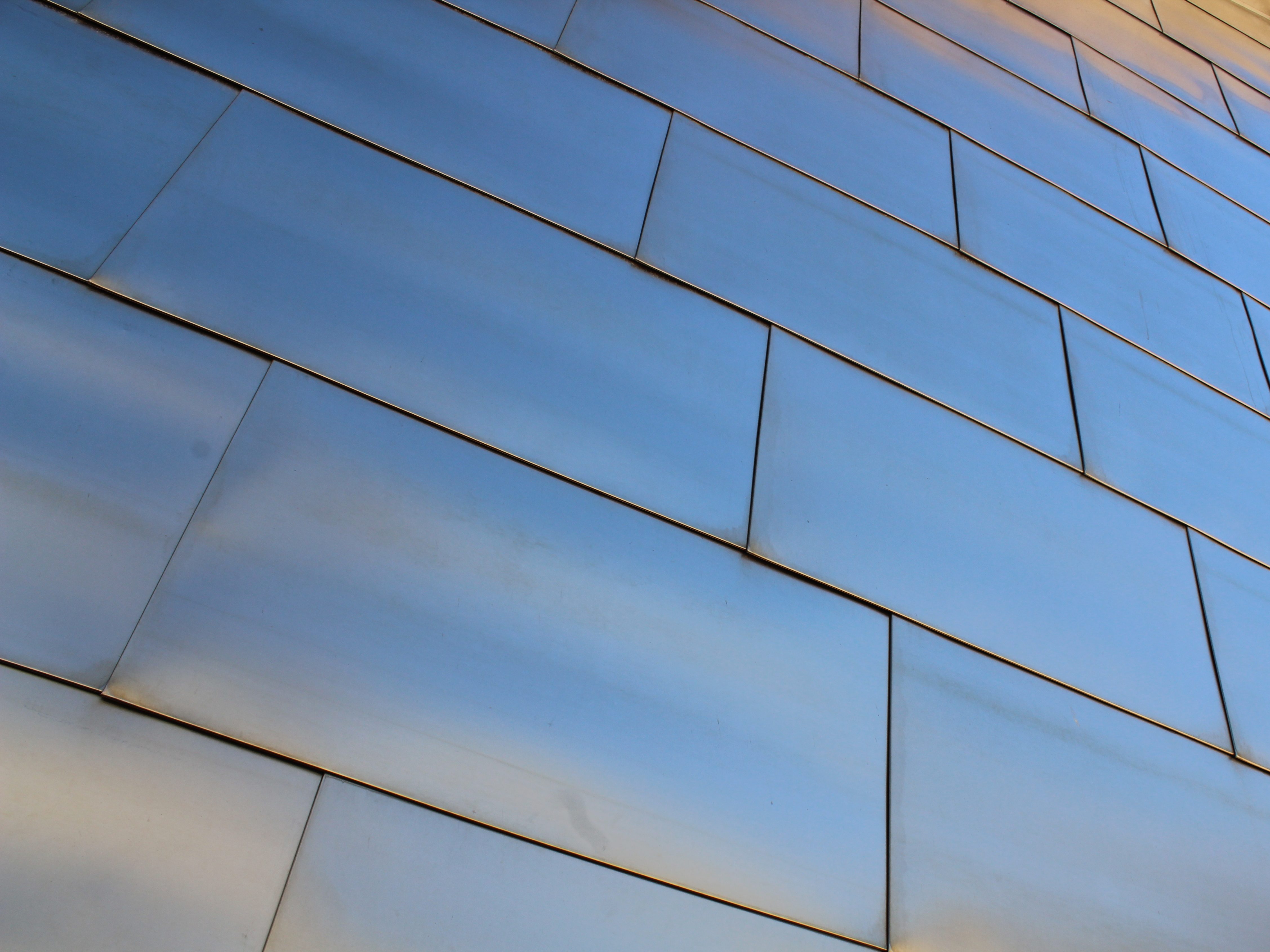

Shingles

Shingles can offer a project a unique look to alternative façade systems and can be applied to both façade and soffit areas. Shingles are competitive on price and can be advantageous on irregular shaped areas.

We can form shingles in any of the following materials;

  • Zinc
  • Copper, brass and bronze
  • Stainless steel
  • Coated steel
  • Coated aluminium

The shingles can be fabricated in a range of shapes and sizes including square, rectangular or diamond and are all mechanically notched for a perfect finish every time. Each shingle interlocks with the adjacent tiles on all four sides and is fixed using concealed cleats, generally onto a compatible timber sheet substrate. They can be installed in either a staggered pattern or aligned both horizontally and vertically.

Maximum length:

up to 2000mm

Maximum Width:

up to 600mm dependant on material and client’s design

Material thickness:

0.7mm – 1.0mm

Substrates:

Compatible timber deck

System Type:

Rainscreen Façade
